Setting Up Local Web Services (live results)

What You Will Learn

Once you complete this tutorial you will be able to show live results from your local web server.

Features

Web Services is a set of features in Sqorz that can be access by other computers on the same network by just using a web browser. The features include:

  • Transponder checking station
  • Licence checking station
  • Live results display
  • Results overlay for live streaming
  • Staging
  • Last Race (race number on the track)
  • Extra registration laptops
  • Commentary information
  • Photo Finish
  • Training screen

Steps

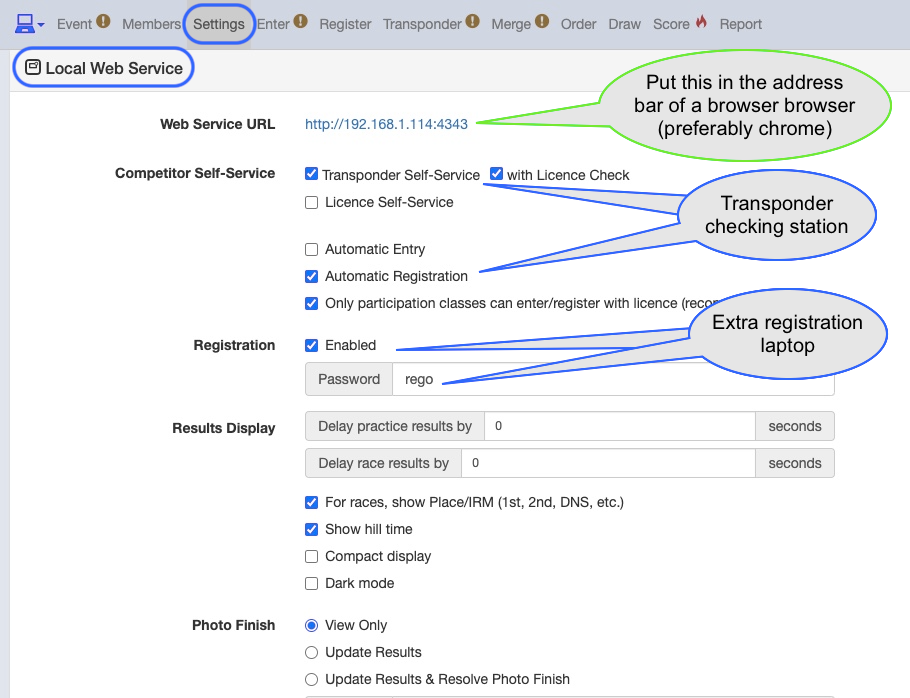

Open the event, go to Settings / Local Web Services and switch to On


Select the configuration you need for Transponder checking station or second registration screen


Open a browser on another computer on the same network and enter the Web Service URL as shown above (Note “http://” is not necessary in most cases) i.e. 192.168.1.114:4343

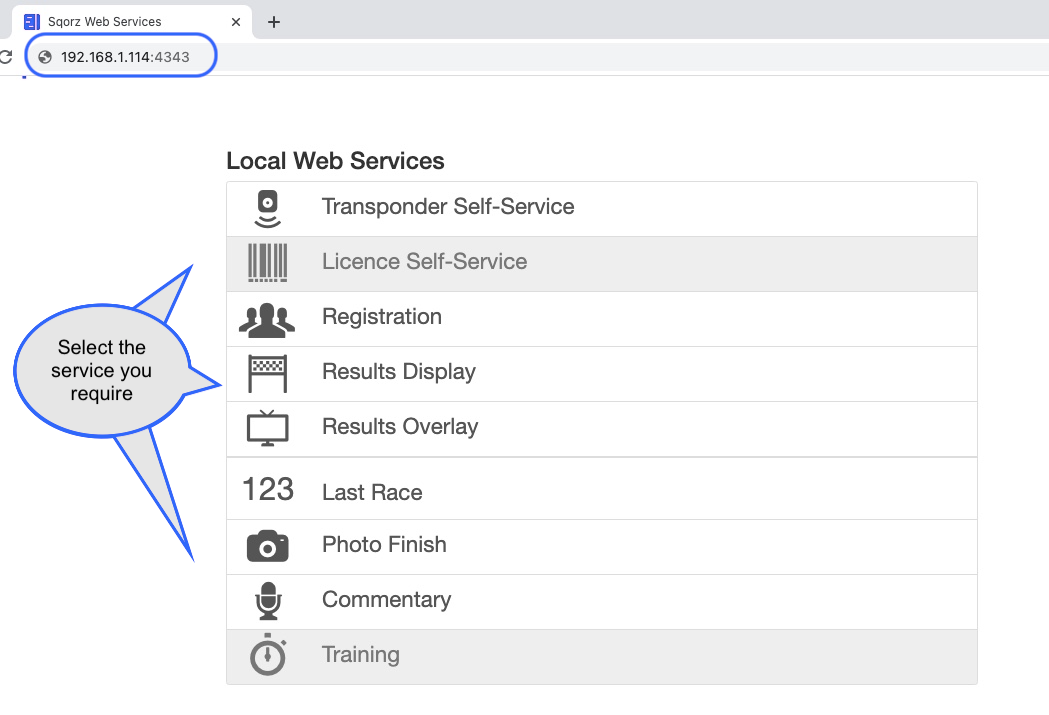

Then select the service you wish to display.


You now have live access to the data from a second computer on the network. You can repeat the last step on other computers if you wish.
